22.6“x22.6"(575*575)Boat Accessories Aluminum Boat Hatch Porthole Window Tempered Glass Side Marine Windows
22.6“x22.6"(575*575)Boat Accessories Aluminum Boat Hatch Porthole Window Tempered Glass Side Marine Windows
无法加载取货服务可用情况

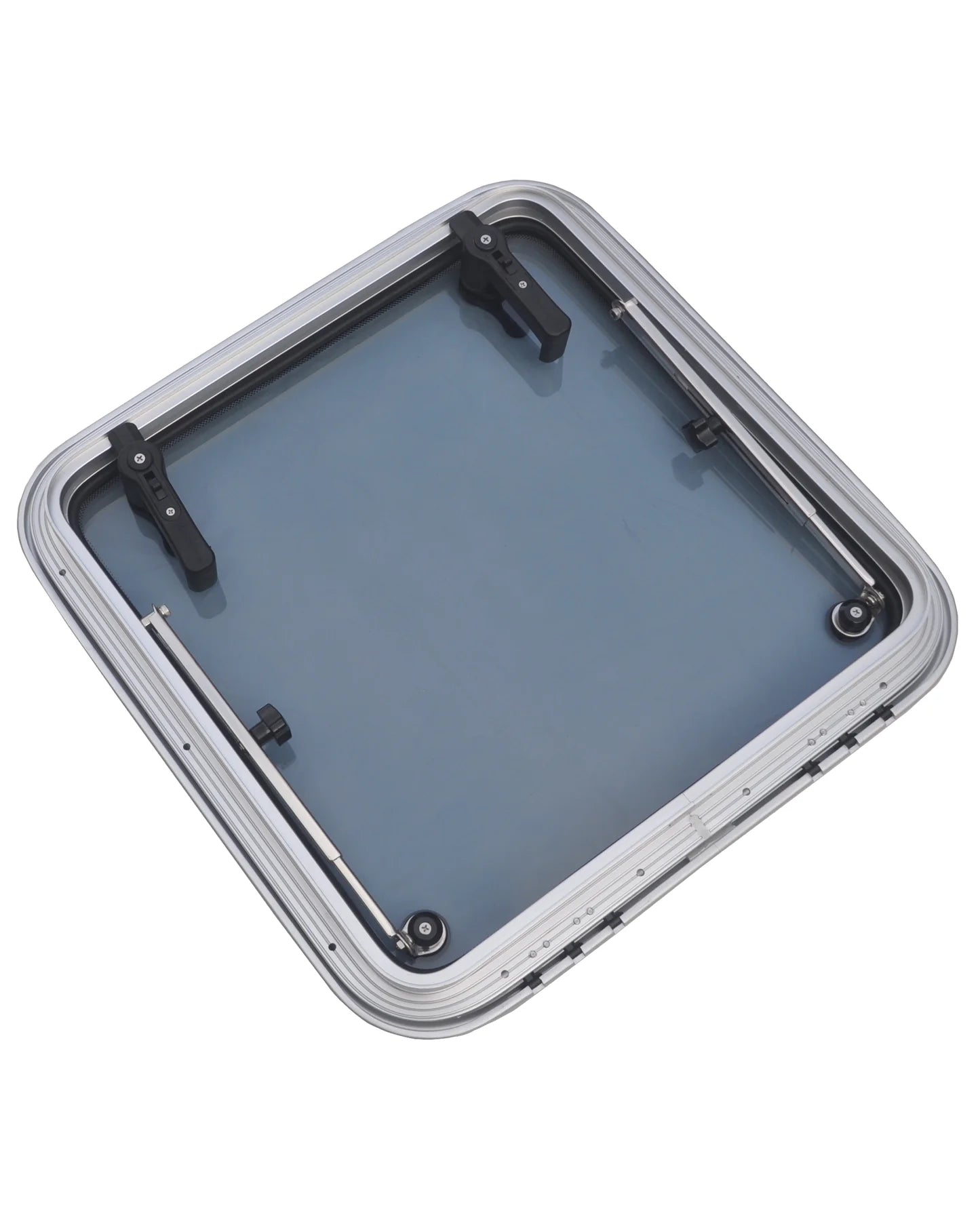

Heavy-duty Anodized Aluminum Square Hatch Frame for Corrosion Resistance;

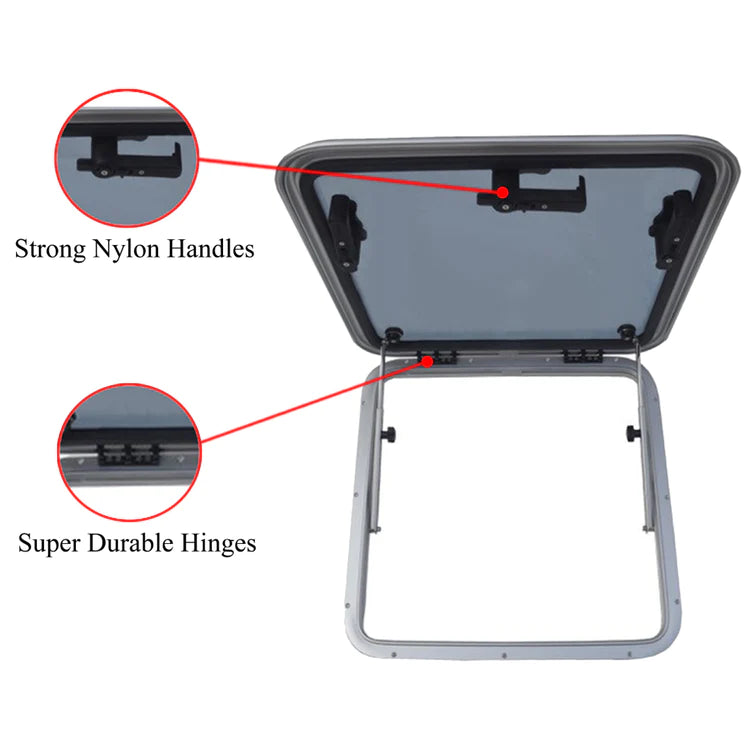

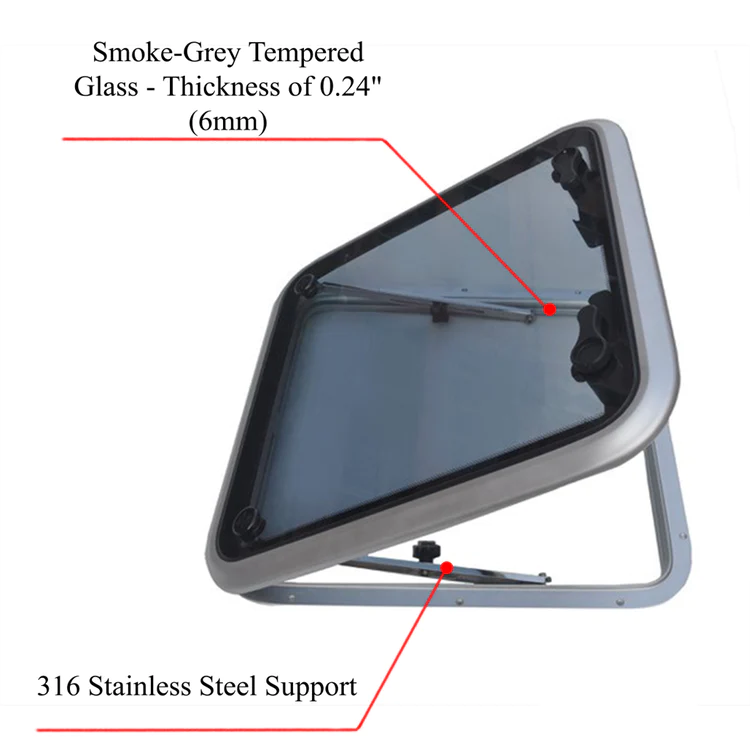

Come with 0.24" (6mm) thick of Smoke-Grey Tempered Glass Top, 316 stainless steel support, and durable hinges;
Provide protection against the elements. Good for boat, yacht, ship, and RV;
Please check the Dimension Table for the overall size and cutout size of each model.
Dimensions of this hatch model:
Overall Size is 22.6"x22.6"(575mmx575mm)
Cut-out Size is 20"x20" (510mmx510mm)
Corner Radius: R1.8 inch (R45mm)
Dimensions of Each Square Hatch Models:
|
Model No. (Inch) |
A: Overall Size (Inch) |
B: Cut-out Size (Inch) |
C. See-through Size (Inch) |
|
16.7 x 16.7 |
16.7 x 16.7 |
14.2 x 14.2 |
12 x 12 |
|
18.7 x 18.7 |
18.7 x 18.7 |
16.1 x 16.1 |
15 x 15 |
|
20.7 x 20.7 |
20.7 x20.7 |
18.1 x 18.1 |
16.9 x 16.9 |
|
22.6 x 22.6 |
22.6 x 22.6 |
20 x 20 |
18.9 x 18.9 |
|
24.6 x 24.6 |
24.6 x 24.6 |
22 x 22 |
20.9 x 20.9 |
|
26.6 x 26.6 |
26.6 x2 6.6 |
24 x 24 |
22.8 x 22.8 |
Corner Radius: R1.8 inch (R45mm)
NOTE:
-
Important - Please measure carefully before placing your order. The model number is the Overall size of the hatch, but not the Cutout size.
-
Please refer to the above Dimension Table for the Cut-out Size.
-
The latch works from inside only ( Leak-free design on handles.
-
Buyers are responsible for the customs duties or import taxes in the destination country if there is any.
